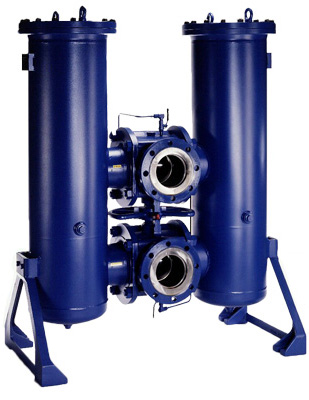

BOLLFILTER Duplex Type 2.68.2 / 2.78.2: Welded filter with ball change over valve and flexible connections

ASME or DIN
2 ½" - 14" DN 65 - DN 350

ball valve Change over (optional as with Butterfly valves)

cleanable (stainless steel element),
disposable (glass-fiber matting)

0,5 µm - 5 mm

PN 10 / PN 40 (higher pressures on request)

carbon steel, stainless steel, welded
stainless steel
non-welded

1.) Connecting elements
Flexible connection possibilities
e.g., flanged, NPT, weld-on ends, ball valves, needle valves

2.) Instruments
Differential pressure connections such as optical and optical/electrical differential pressure measurement systems

3.) Materials
Filters available on request in Duplex or Super Duplex

4.) Optional equipment
Cover lifting/pivoting mechanism
Cover safety device
