BOLLFILTER Simplex Type 1.03.2

Filter for low pressure
Flange Connection
DIN Only
DN 65 - DN 300 / (Approx. 2 ½" - 12")
Connections inline
yes
Filter element
Basket element
Candle element
Grade of filtration
10 µm - 5 mm
Pressure stage
PN 10
Filter housing
Nodular cast iron (EN-GJS-400-18)
Optional equipment
Differential pressure indicator
Version: optical or optical/electrical
Epoxy coating and rubber coating for basket strainer
Nickel-plated housing
Cover safety device
Drinking water version

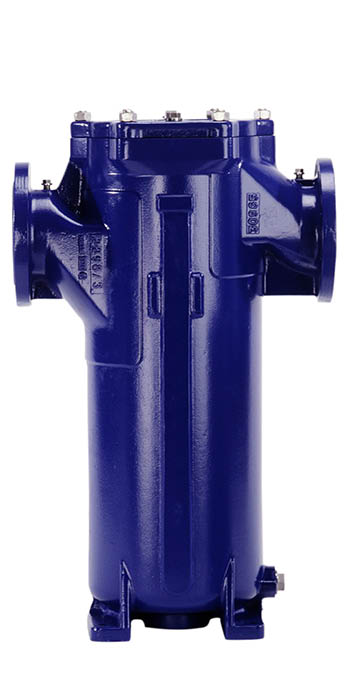

BOLLFILTER Simplex Type 1.03.2

The simplex filter type 1.03.2 consists of one filter chamber and is for use in all circumstances where the plant or filter can be easily shut off by means of a shut-off valve to allow cleaning or replacement of filter elements.
