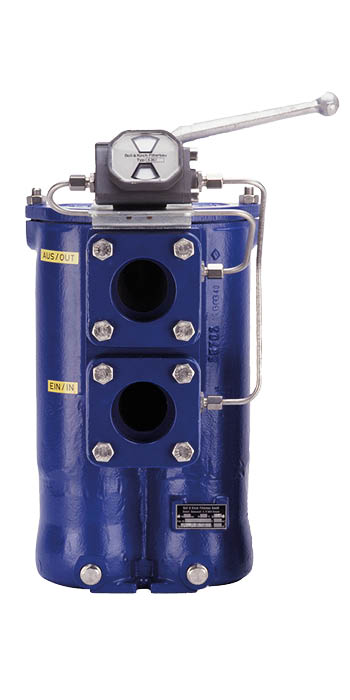

BOLLFILTER Duplex Type 2.04.5: Nodular cast iron filter with plug change over valve for small volumes

Flange Connection
DIN Only
DN 25 - DN 80 (Approx. 1" - 3")
Switch-over
plug valve
Filter element
star-pleated element,
basket element
Grade of filtration
10 µm - 5 mm
Pressure stage
PN 25
Filter housing
nodular cast iron
Optional equipment
- differential pressure indicator optical or electrical
- heating
BOLLFILTER Duplex Type 2.04.5: Nodular cast iron filter with plug change over valve for small volumes

Duplex filter for liquid filtration

The BOLLFILTER Duplex Type 2.04.5 is a filter used for the filtration of liquids, such as water, oil and liquid fuel. It can be installed in the suction or pressure lines to protect parts of the system installed upstream, such as valves, pumps, sliders, pressure gauges or pipelines and, thus, protects these against contamination and silting.

BOLLFILTER Duplex Type 2.04.5 features

The BOLLFILTER Duplex Type 2.04.5 filter consists of two filter chambers. The filter elements used are star or basket sieves, which can remove particles in liquids of 10 micron to 5 mm filter fineness. In order to retain the finest metallic solid bodies in the filter element, as required, magnetic bars can also be installed in the sieve elements.

Downloads

Filtration of all liquids ▶ Filtration of all liquids. For installation into suction or pressure pipework to protect plant components preventing accumulation of dirt and sludge
BOLLFILTER Duplex Type 2.04.5
